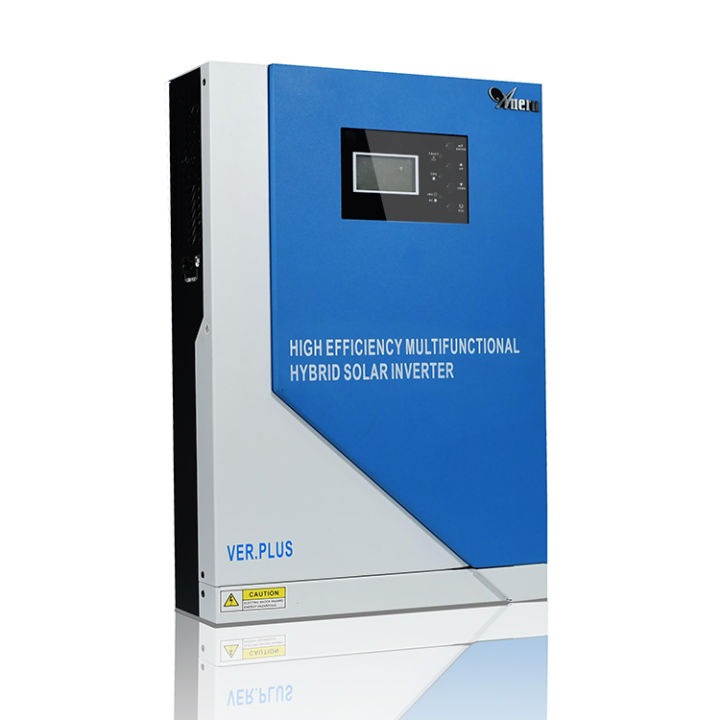

Anern 3.5KW/5.5KW Pure Sine Wave Solar Inverter 100A MPPT Hybrid Inverter 24V/48V 500VDC PV Input 230VAC Converter Hybrid Off Grid Inverter

Specifications of Anern 3.5KW/5.5KW Pure Sine Wave Solar Inverter 100A MPPT Hybrid Inverter 24V/48V 500VDC PV Input 230VAC Converter Hybrid Off Grid Inverter

Brand: Anern
Powerpoint Type: Powerpoints
Delivery Option Instant: Yes
What’s in the box: 1 x Hybrid Solar Inverter, 1 x User Manual

Product Details

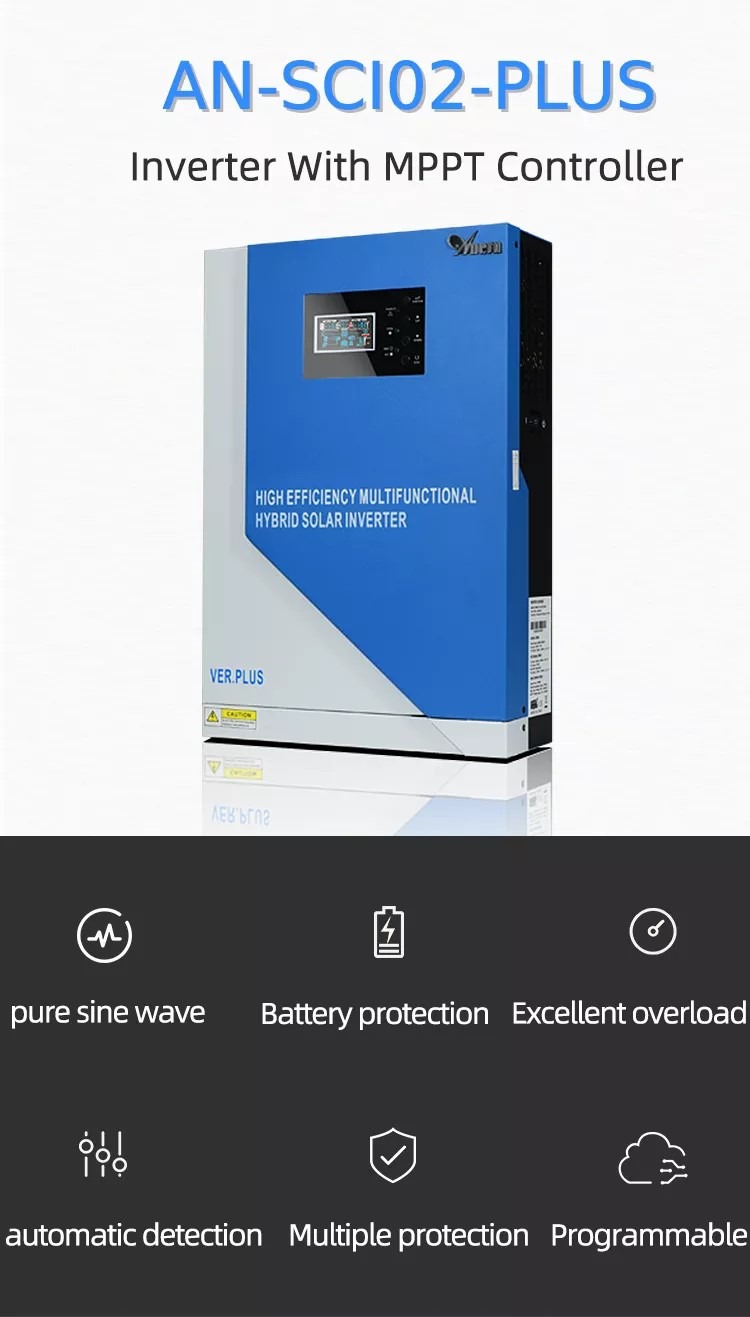

Anern 3.5KW/5.5KW Pure Sine Wave Solar Inverter 100A MPPT Hybrid Inverter 24V/48V 500VDC PV Input 230VAC Converter with WIFI Hybrid Off Grid Inverter
Lead acid battery, lithium battery, gel battery and lifepo4 battery can be connected.
High efficiency pure sine wave inverter.
Wide PV input range (120Vdc–500Vdc) 100A MPPT SCC.

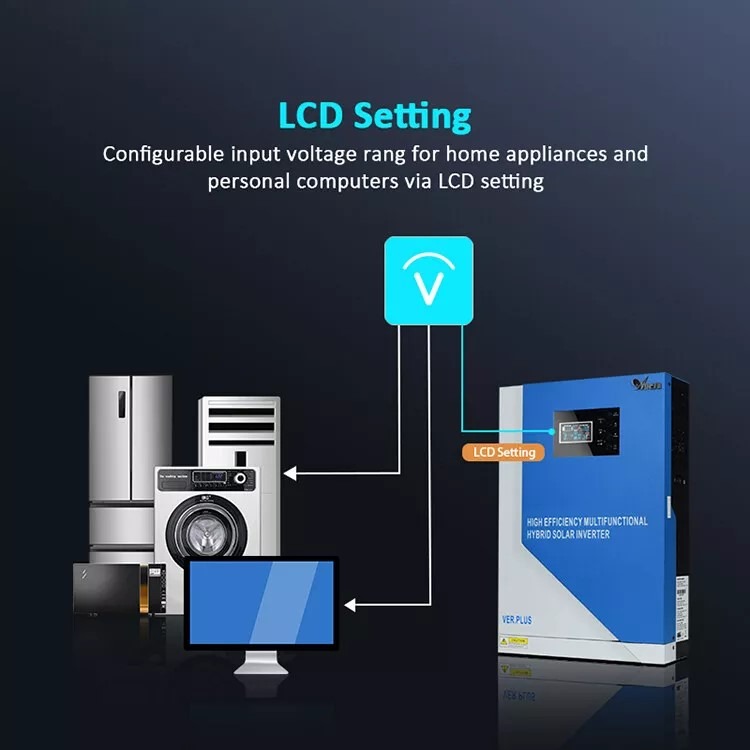

Wide utility input range (90Vac–280Vac) for unreliable grid even in the most challenging environments.

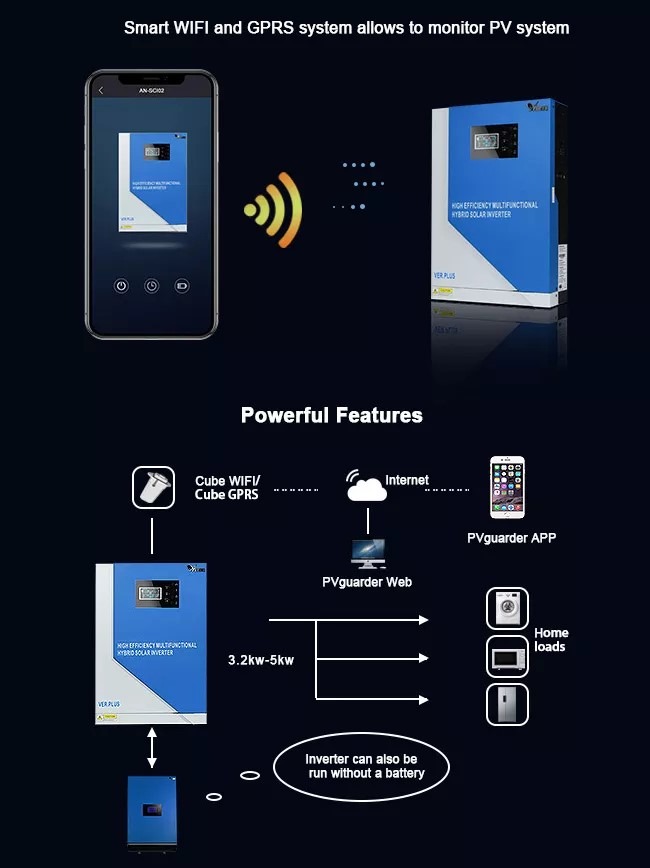

Monitor, troubleshoot, or communicate via USB/RS232.

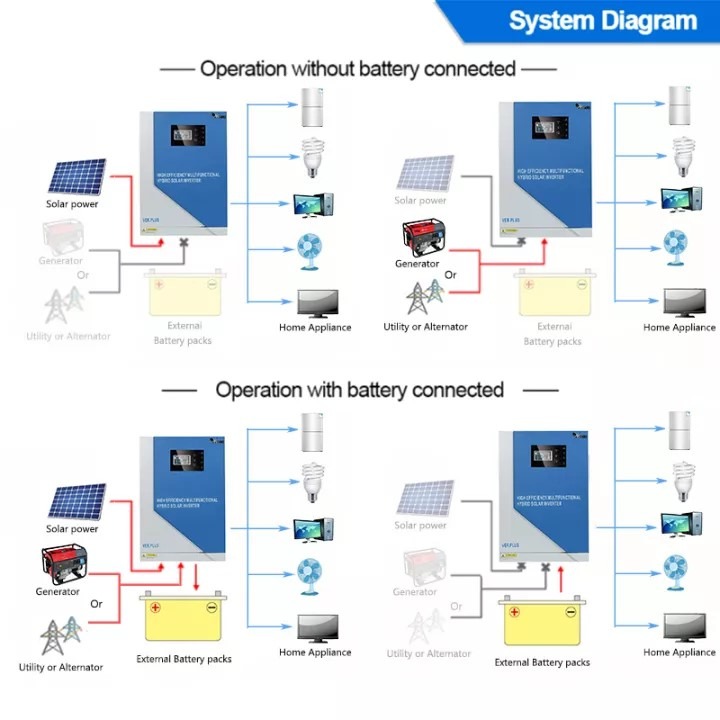

Can use with/without battery.
The inverter has overvoltage protection and overload protection, which can prevent the machine from being damaged by excessive voltage fluctuation within a certain range.

Note

1. The starting power of inductive load electrical appliances shall be at least three times the rated power of the electrical appliances. If the starting power exceeds the inverter power, the inverter may be damaged. Please select a suitable model before purchasing.
2. Please connect the circuit correctly according to the instructions, and install switches for each circuit.
3. Starting sequence: first turn on the battery switch, start the inverter, and turn on the PV, mains, and load switches.
4. Shutdown sequence: turn off the switches of load, PV and mains, turn off the inverter, and finally turn off the battery.

Features of Solar Inverter

1. High efficiency pure sine wave inverter; Wide PV input range (120Vdc -500Vdc) 100A MPPT SCC; Intelligent 3 stage 80A AC battery charger.
2. Surges to 2X continuous power for 5 seconds for motor loads.
3. Intelligent functionality enables utility and solar input prioritization.
4. Wide utility input range (90Vac~280Vac) for unreliable grid even in the most challenging environments.
5. Field serviceable with replacement boards and spare parts.
6. Monitor, troubleshoot, or communicate via USB/RS232.

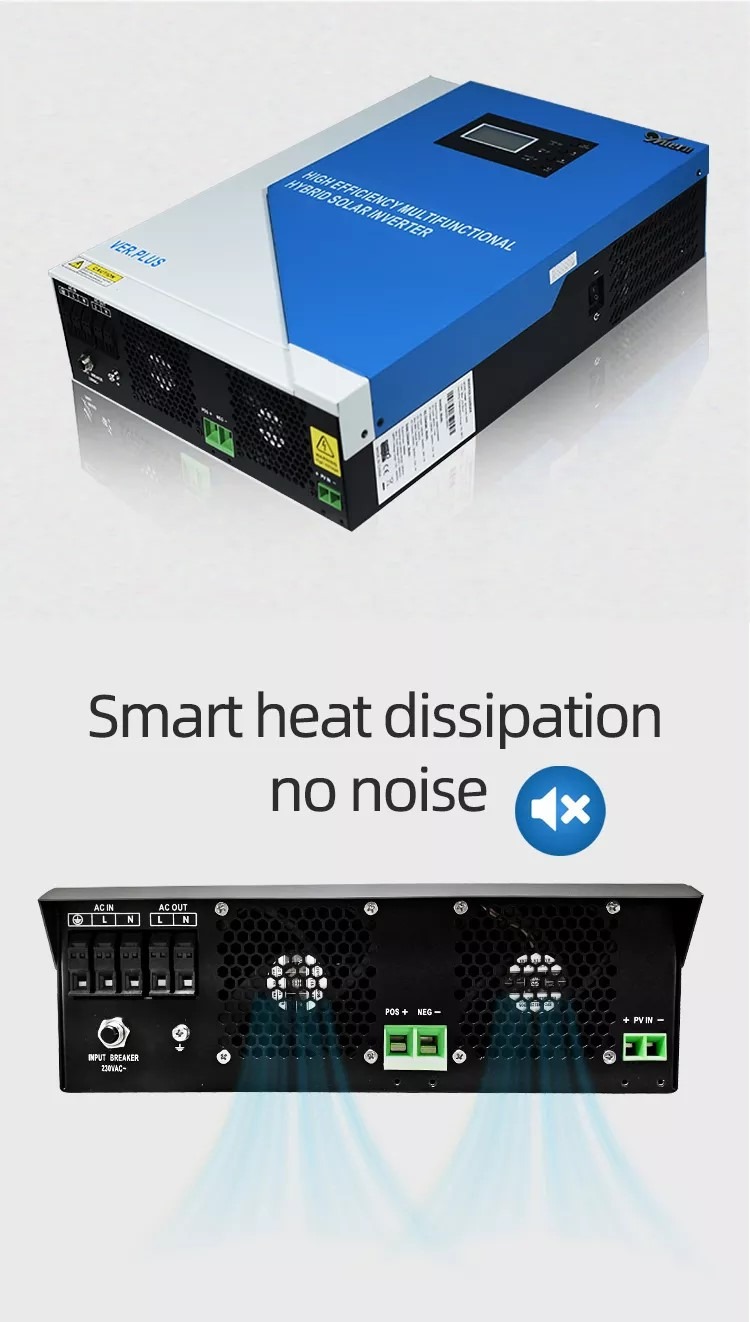

7. System configures quickly into compact, wall-mounted system.

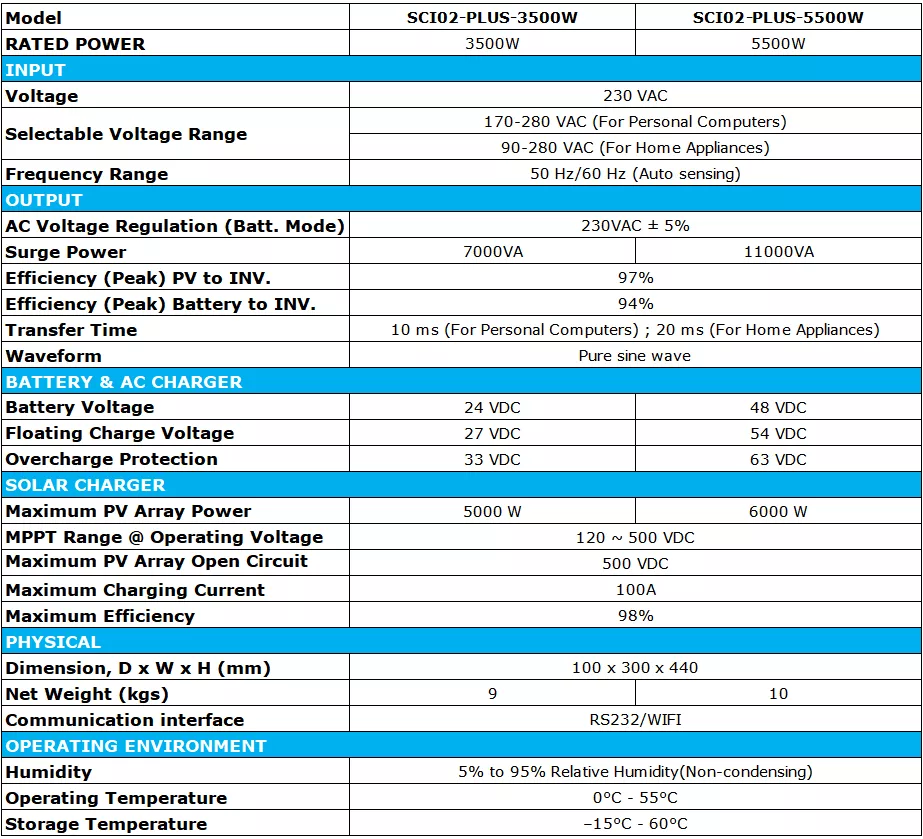

Product Parameter
